Talking about the O ring for the fuel pump made me go back and look at it again.

7Zap gives the original as N  90312402 for my '91 8v PB and a spec. of 42 x 5.3 mm, no mention of anything else about it unfortunately.

Apparently green is a generally used / recognised colour for a material called 'Viton', though that's not a hard and fast rule so only use it as a guide.

I did try to find some genuine ones at the time though they were either no longer available or that Greek seller on eBay had some, but postage was astronomical.

I found a German place that supplied 42 x 5.3 rings however they turned out to be 'Nitrile' (also known as NBR) which has different properties and depending on what you read may or may not be reliable in fuel enviroments.

I still can't properly get my head around all the differences and suitabilities of the various materials.

Then there's something called 'Shore', which I think is basically how flexible they are, adding to the confusion. If it's too hard, won't seal properly, too soft and they tear.

Upshot was I could find rings of the correct measurement, but not material and rings of the right material but ever so slightly smaller (0.3 mm) diameter.

'Viton' is apparently ethanol resistant - though E10 wasn't a consideration back in 1991 I'm guessing VW intentionally specced it and the fact it still exceeds standards is a happy coincidence.

Like I said above, my original ring seemed quite hard (steady!) but now that I've gotten new ones of the same material, they're as equally so.

The new ones are 42 x 5.0 and 'Viton' - they fit with no effort and seem to seal perfectly, but I've yet to run fuel through it on the car... I can fall back on the original if needs be.

If your original is shot and you're stuck for a replacement might be worth trying out these replacements and letting us know how you get on - would be a good source for others if they work fine.

Price was for four, he may sell them individually also -

https://www.ebay.co.uk/itm/324071776172









Re: 1992 Alpine White GTI 8v...

Reply #106 –
Edd China would be proud!



Re: 1992 Alpine White GTI 8v...

Reply #107 –
This was pretty much how it came out of the tank other than to give it a wipe over and run it on the bench - spun like a sewing machine.

I was expecting to be looking for a new one, even the seals all seem spot on too, though if I've time and remember / they're available, will maybe look into replacing them as a precaution.

Might have been because the tank was completely dry of fuel, not so much as a drop, having sat for a decade?





Re: 1992 Alpine White GTI 8v...

Reply #108 –
These may be in another post, if not probably lost to the the old forum.

Metal MK3 reflector body solution to the problem of scorched plastic MK2 ones...





Re: 1992 Alpine White GTI 8v...

Reply #109 –
That pesky green 'O' ring I mentioned in the 'not so obvious service items' post.

Well worth looking at and sorting at your leisure if needs be... sods law says you'll only find out it's stuck when it's too late and you're wanting to adjust the dizzy.

Re: 1992 Alpine White GTI 8v...

Reply #110 –
Thought I'd followed the schematic and accounted for everything, but missed this one - No. 6 - Part 321 512 109



Described as an underlay, looks like the bottom of the spring rests on it to protect the lower spring disc (No. 5).

Googling suggests it's not readily available, though for the first time in a long time ECS actually seem to stock something I'm after -

https://www.ecstuning.com/b-genuine-volkswagen-audi-parts/packing/321512109/



For what it is, a piece of pressed tin, it's quite expensive to have a pair sent from the US... working out at about £25.00 delivered (and also assuming HMRC don't get involved, then you can probably double that with admin. costs).

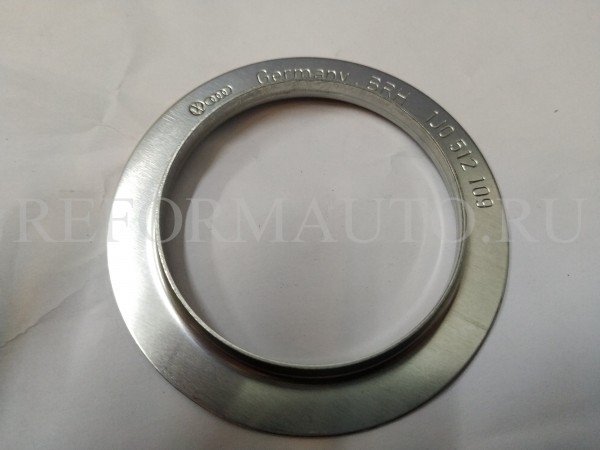

Found this very similar item, does the same job in much later VW's - part # is very similar.

https://www.reformauto.ru/brand/vag/volkswagen-audi-gruppe/vag-1j0512109/



Unfortunately can't find specs. for either one on-line to see if they would interchange and save me spending 10 times what I might need to.

Anyone know of a cheaper source of the original 321 512 109 or if the later 1J0 512 109 and it are one in the same?

Re: 1992 Alpine White GTI 8v...

Reply #111 –
If I compare what I believe part 5 is on my Koni adjustable rears then that part is made out of plastic. The Konis have multiple grooves on the strut to allow for use with different length springs ie the spring plate rests on a circlip that fits in the groove but isn't in this diagram.
£25 seems a little excessive for the part but that might be down to low demand leading to limited supply. Surely there is a more cost effective option that doesn't compromise safety?
1991 Tornado Red BB 8v GTI Moredoor
2008 Skoda Octy Scout aka dirty diesel

Re: 1992 Alpine White GTI 8v...

Reply #112 –
About the fuel pump, I'd say it's possibly not the original item.
Judging by the year of your car, I would have thought it would have had West Germany stamped on it when new.
This one could be an oe replacement?
Mk2 Driver
Mk2 Silver 8v
Corrado G60 Turbo
Mk2 Red 8v
Mk2 Grey 16v
Mk2 BBM ABF
Bora 20vt
Mk2 Green VR6
Mk2 Green ABF
Mk2 BBM 20vt
3.2 TT Roadster
Mk2 Red 16v
225 TT Coup
3.2 TT Coup
Mk4 Anniversary
Mk7 Red GTI Performance
Mk2 Red GTI Restoration
Mk2 BBM R32
911 Carrera 4S

Re: 1992 Alpine White GTI 8v...

Reply #113 –
I reckon my car was build around August '91 and was re-unification in 1990?

I was also guessing the 27/91 maybe denoted the week/year of manufacture (July '91) which would tie in, but could be wrong there... plus goodness knows what's happened in it's life before I got involved, so could very well have been replaced.



Re: 1992 Alpine White GTI 8v...

Reply #114 –
Never thought of MK2's in that context before, it's an interesting thought.

Could open up a whole new can of worms like the Type 19 debate and start a fresh one about what constitutes a pre / post re-unification car!

Re: 1992 Alpine White GTI 8v...

Reply #115 –
Quote from: AndyBa on
If I compare what I believe part 5 is on my Koni adjustable rears then that part is made out of plastic. The Konis have multiple grooves on the strut to allow for use with different length springs ie the spring plate rests on a circlip that fits in the groove but isn't in this diagram.
£25 seems a little excessive for the part but that might be down to low demand leading to limited supply. Surely there is a more cost effective option that doesn't compromise safety?

In fairness to ECS the postage (which in itself isn't all that bad considering it's crossing the Atlantic) makes up a third of the cost, the bit's themselves are about £8.00 each, but when you can get the later part for around £4.00 each at a dealer they definitely do work out expensive by comparison.

It's an odd one... I've since got rid of the old shocks and can't check if there was one on them, don't recall seeing anything similar and I even took them apart out of curiosity, but they may well have rotted away.

The new shocks came with a new base plate, plastic cap and 3 x nuts plus a spacer which I assume is what they reckon you need to change with the shock itself. In that case surely they would've included No. 6 also if important?

It may well partly act to protect the spring / base from pressing against one another but might it also allow for any rotation between the two when things are under load? I'd imagine that'd be more important, being a sacrifical barrier preventing them grinding into one another, just guessing?

You can buy everything else you see in the schematic using the 7Zap quoted part numbers on Autodoc and the like with the exception of No. 6 which must be significant - is it an item that's since been decided unnecessary and not on later part databases?

That seems to have happened with Part 4. which is now shown as a M10 self locking nut on the schematic when it was originally that clip (the first 'test your knowledge' item) and captive standard hex nut from the factory.

Re: 1992 Alpine White GTI 8v...

Reply #116 –
Quote from: L90E on
I reckon my car was build around August '91 and was re-unification in 1990?

I was also guessing the 27/91 maybe denoted the week/year of manufacture (July '91) which would tie in, but could be wrong there... plus goodness knows what's happened in it's life before I got involved, so could very well have been replaced.

I don't know why, but for some reason I thought you had a small bumper car!
That's how I usually tell what parts came from pre and post 90 spec cars.
So yeah, almost certainly the original pump, good to see it's still working well.

The pre/post unification debate would be a good grenade to thrown into Facebook on a Friday night and watch the carnage...
